TCXO/VCXO Oscillators
PLL, TCXO and VCXO oscillators incorporating laptech precision crystals. Miniature low profile smd units, high precision TCXO, excellent phase noise, low ageing, standard and custom designs, smd TCXO oscillators, smd VCXO oscillators.
VCXO oscillators |
||||
| TYPE | BASIC SPECIFICATION | FREQUENCY | DATA | IMAGE |
|---|---|---|---|---|
| TA265 - 8.5 | DIL TCXO resist weld from ±1.0ppm(-10 +60)°C |
(10 ~ 250)MHz |
|
 |
| TA400 - 10 | TCXO, hermetically sealed case, (20x 20 x 10)mm, wide frequency range, from ±0.5ppm(0 +50)°C | 1MHz ~ 1GHz |
|
 |
| TA560 - 10 | smd TCXO, (20 x 20 x 10)mm, wide frequency range, from ±0.5ppm(0 +50)°C AT cut |
1MHz ~ 1GHz |
|
 |
| TA936 - 10 | TCXO, 5 pin, very wide frequency range, AT cut, (26 x 36 x 10)mm, from ±0.5ppm(0 +50)°C |
1MHz ~ 1GHz |
|
 |

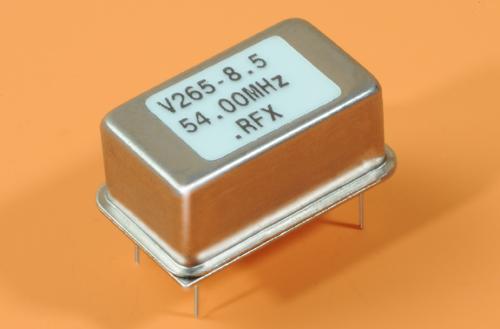

| V265 - 8.5 | VCXO, DIL resistance weld case, wide pulling range up to ±300ppm |
(10 ~ 250)MHz |
|
 |
| V400 - 10 | VCXO, very wide frequency range, hermetic seal (20 x 20 x 10)mm, pulling range up to ±300ppm |
10MHz ~ 1GHz |
|
 |
| V560 - 10 | smd VCXO, (20 x 20 x 10)mm, wide frequency range, pulling range up to ±300ppm |
10MHz ~ 1GHz |
|
 |
| V936 - 10 | VCXO, 5 pin case, (26 x 36 x 10)mm, wide frequency range, pulling range up to ±300ppm |
1MHz ~ 1GHz |
|
 |
PLL oscillators |
||||
| TYPE | BASIC SPECIFICATION | FREQUENCY | DATA | IMAGE |
| PL936 - 15 | PLL TCXO (26 x 36 x 15)mm, extreme frequency range, 10.00MHz reference frequency, ±1.0ppm holdover |
1MHz ~ 2.4GHz |
|
 |
| PT626 - 13 | PLL TCXO, high shock and vibration, (2.25 x 1.5 x 0.5) inches, 10.00MHz reference, ±0.005ppm holdover |
1MHz ~ 2.4GHz |
|
 |
